MICRO INSTRUMENTS FOR APPLICATION IN MICROSCOPIC SCIENCES Minitool is a manufacturer and distributor of a line of high quality precision tools and instruments for microscopic investigation and applications
SMALLEST PRECISION INSTRUMENTS FOR LABORATORY AND PRODUCTION

Micro Drilling and Punching Systems


Minitool Micro Drilling Systems
General Information

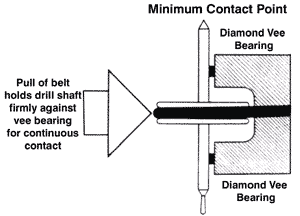

Minitool's patented micro drilling machines represent a completely new and innovated approach to precision micro drilling.  Super hard in-line interchangeable vee bearings replace the conventional ball or sleeve bearings.  The drills are mounted within an interchangeable drive pulley and held against the vee bearing by means of a special endless drive belt.  The drill now becomes its own spindle, eliminating the runout that is a common factor in conventional machines using ball bearings, sleeve bearings, spindles, collets or chucks.

Minitool, Inc., manufactures manual as well as CNC-controled (automatic) micro drilling systems.

Drills, endmills and special tooling are also manufactured by Minitool, Inc., using our proprietary tool grinding technique.

Minitool's patented interchangeable vee-bearing design is typical on all micro drilling machine models.  It eliminates all chucking errors.

Minitool Micro Drilling Systems
Minitool Drilling Machines

Model

Description
Micro Drilling Machine Model H

Micro Drilling Machine Model H

For precision drilling of microscopically small holes in sizes from .025mm to .50mm diameter (.001" to.020")
Micro Drilling Machine Model L

Micro Drilling Machine Model L

For precision drilling of microscopically small holes in sizes from .03mm to .50mm diameter (.0012" to.020")
Micro Driller 2000

Micro Driller 2000

Micro Driller fits all our standard micro drills.  This attachment can be placed in an automatic drilling machine or in any Bridgeport mill.  Uses Series 1-254HSS and Carbide Micro Drills.

Micro Driller 2000-11

Micro Driller 2000-11

Similar to the model 2000 but features a standard or short yoke diamond vee-bearing, the same as used in our higher priced model machines.  It has solid state variable speed control and micro dial infeed.  It also features a larger drive motor.  Uses Series 3-40 and Series 125-15 drills as well as 45-35 precision spindle.

Minitool Micro Drills
Series 125-15-1 SPADE type
Solid micro grain carbide micro-drills have 3.18mm (.125") diameter and 38mm (1.5") overall length.  They are available in sizes from .025mm (.001") diameter to .50mm (.020") diameter. Tolerances:  Shank diameter:  3.18mm (.125") +.0000"-.0005".
Tip diameter:   +/-.0002".*
Flute length:   5-7 x tip diameter.
MINIMUM ORDER:   2 drills per container.

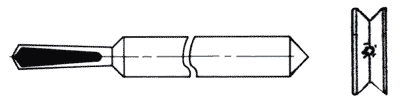

Series 125-15-1 SPADE type
Spade Type 125-15-1 2000-35 Drive Pulley
Series 125-15-2 SPIRAL type
Solid micro-grain carbide micro-drills have 3.18mm (.125") shank diameter and 38mm (1.5") overall length.  They are available in sizes from .10mm (.0039") diameter to .50mm (.020") diameter.

Tolerances:  Shank diameter:  3.18mm (.125")+.0000"-.0005".
Tip diameter:   +/-.0005".
MINIMUM ORDER:   2 drills per container.

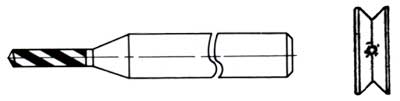

Series 125-15-2 SPIRAL type
SPIRAL TYPE125-15-2 2000-35 Drive Pulley
Series 45-35 Precision Collet Spindle

Minitool«s precision collet spindle 45-35 may be used in all our drilling machines except Ultra Drill 4000, Model L and Micro-Driller 2000.  The collet spindle will accept series 1-254 and 1-254C micro drills or any other micro drills having 1mm diameter shanks.  Run-Out Tolerance .0005" or less.
MINIMUM ORDER:   2 drills per container.

Series 45-35 Precision Collet Spindle

Hardened and ground precision collet

Hardened and ground spindle

Draw bar with hardened cone tip contact and hand wheel knob


spindle drive pulley 45-2500

Series 1-254 & 1-254C Micro Drills

Series 1-254 and 1-254C micro drills have 1mm diameter shanks (.040") and 25mm (1.0") overall length.  Series 1-254 drills are HSS spiral type and contain 9.5% cobalt for excellent cutting and minimum wear.  Series 1-254C drills have high density Solid Carbide, spiral type, and are used for work on very hard and tough materials.  Series 1-254 drills are available in sizes from .03mm (.0012") to .50mm (.020").  Series 1-254C drills are available in sizes from .10mm (.0039") and up.  These drills can also be used in our Model L machine and in our Micro Driller 2000 using drill drive pulley 2000-36.

Tolerances:   Shank and tip diameter +/- .005mm (.0002").

MINIMUM ORDER:   5 drills per container.

Series 1-254 & 1-254C Micro Drills
Drill Drive Pulley 2000-36
(set screw type)
Series 1-254 & 1-254C Drills
Series 1-254 HSS Micro Drills
MD1-254.03MM HSS Microdrill
MD1-254.05MM HSS Microdrill
(40X enlarge)

Our .05mm (.0019”) spiral HSS microdrill has been especially designed for the smallest diameter microdrilling with excellent chip clearing properties.

The 1-254 HSS microdrill line includes this remarkable tool in addition to drills in diameters to .50mm (.020”) diameter in increments of .01mm. (.0004”).  Flute lengths 7-10x tip diameter.

Drills in this micro range require the ultimate in microdrilling equipment that assures minimum drill run out.  Ordinary microdrilling machines employing collets or chucks cannot assure this.  It is for this reason that Minitool has developed a special microdrilling machinewhere precision micro drills, such as the 1-254 series, are held in special vee bearings virtually eliminating drill runout. Our Model L microdrilling machine is simply designed, easy to use, provides, for manual microdrill depth settings, is very economical and highly recommended for use with the 1-254 series drills.

Series 1-254 HSS Micro Drills
Drill Drive Pulley Series 1-254 HSS

Minitool Punching Machines

When punching and blanking to .10mm (.0039”) or smaller, conventional punch and die methods can no longer be applied.  Minitool, Inc. has developed a special kind of tooling for their micro punch presses designed expressly for punching holes in the micro range.

All Minitool micro punch presses are designed and manufactured with features not found on other small punch presses.

  • Adjustable punch and die button alignment capabilities rule out any alignment problems caused by lock screws, set screws, etc.
  • Preloading of press spindles to eliminate any play assures absolute repeatability.
  • Special alloy casting material with all moving and wear parts hardened and ground steel.
  • Micro presses are lightweight, portable and have mounting holes.

Optional Features:

  • Preloading of spindle for 150TK and 200TK presses (standard on 60HP).
  • Larger diameter cylinder and longer stroke for 150AP presses.
  • Stereo microscope especially developed for micro punching.
Minitool Micro Punching Systems
Micro Punchpresses
Punchpresses Model 40TR

Punchpresses Model 40TR

Rack and pinion operated micro-press is used for very fine instrument work, small component assembly, delicate tool and die work, staking, coining, etc.
Punchpresses Model 150 TK

Punchpresses Model 150 TK

Minitool's toggle action press is used for precision assembly, small tool and die work, precision cutting, bending, staking, eyeleting, riveting, etc.
Punchpresses Model 150AP

Punchpresses Model 150AP

Air operated press is used for precision assembly, light tool and die work, precision bending, cutting and staking.
